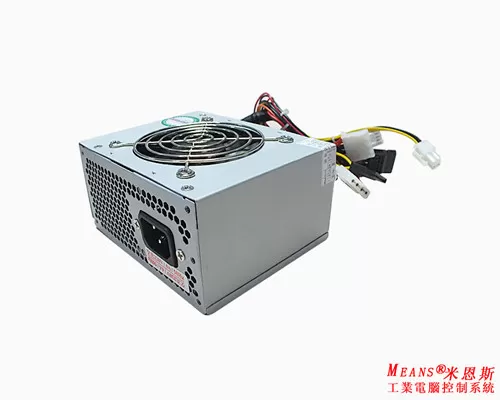

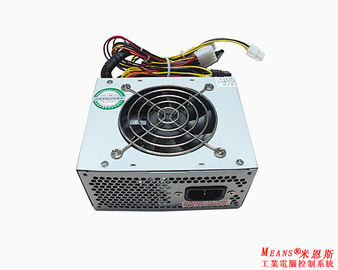

Name: 250W IPC Power supply
Brand: Zhongshan Means Intelligent Technology Co.,Ltd
SKU: MS-P230
Availability: InStock

Home Products Power supply

250W IPC Power supply

Product Details:

Place of Origin:	China
Brand Name:	Means
Certification:	ROHS
Model Number:	MS-P230

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag, carton
Delivery Time:	15 days
Payment Terms:	TT
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

MS-P230

● Confirm 80PLUS
● Confirm SFX12V 3.2Version

● Output Capacity: 250 Watts Continuous
● Low Ripple & Noise & High efficiency
● Operation Temperature:0~50℃
● Dimension: 130* 125 *64mm
● Single 8020mm Low-Noise Fan
● Life expectancy: MTBF :≥100kh hours

● APFC(PFC>99%)
● Multiple Protections Function:(OCP,OVP,UVP,OPP)
● Safety Approvals:CE,FCC,CB,CCC

Output Connectors:


20+4Pin M/B	4Pin CPU	5 Pin SATA	Big 4 Pin Molex	4 Pin FDD
1	1	2	3	1

Specification:

Output Wattage	250W

Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.3 KG
Color	Silver
Fan	Single 8020*1
Dimension	130 (L) x 125(W) x 64(H) mm
Protection	OCP,OVP,UVP,OPP,Short Circuit Protection

INPUT
Input Voltage	180-264Vac
Input Frequency	47 ~ 63 Hz
MTBF	100,000 hrs minimum (at 25 ℃)
Input Current	5A at 115V, 2.5A at 230V

OUTPUT
Voltage	+5V	+12V1	-12V	+3.3V	+5Vsb
MIN	0.2	0.6	0.0	0.1	0.0
NOM	7.5	8.5	0.15	9.5	1
MAX	15	17	0.3	19	2
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 250 Watts. 2) +5V and +3.3V outputs shall not exceed 97 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 235 Watts.

Environment
Operation Temperature	0 ℃ to 50 ℃
Storage Temperature	-40 ℃ to 80℃
Operation Humidity	20% to 85%, non-condensing
Storage Humidity	10% to 95%, non-condensing
