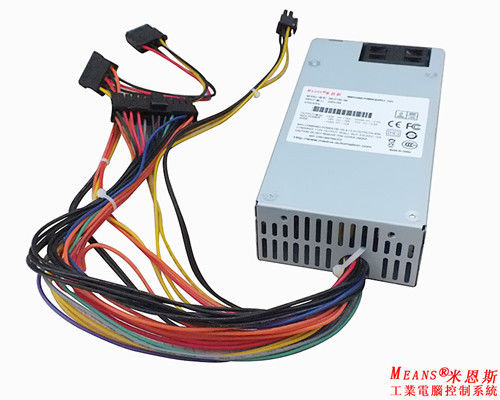

180W IPC Power supply

Product Details:

Place of Origin:	China
Brand Name:	Means
Certification:	ROHS
Model Number:	MS-P180-1M2

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag, carton
Delivery Time:	15 days
Payment Terms:	TT
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

MS-P180-1M2 :
● Conformed to 80Plus Type
● Conformed to IPC 1U Flex Type
● Output Capacity: 180Watts Continuous
● Wide voltage input 90-264VAC
● Low Ripple & Noise
● Operation Temperature:0~50℃
● Dimension:150* 82 *40.5mm
● 4020mm Low-Noise Fan
● Active PFC
● Life expectancy: MTBF>100,000 hours
● Multiple Protections Function:(OCP,OVP,UVP,OPP)
● Safety Approvals:CE, FCC, CB, CCC

Output Connectors:

20+4Pin	4Pin	5Pin	Big 4Pin
M/B	CPU	SATA	M Molex
1	1	2	3

Specification:

Output Wattage	180w
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	0.9 kg
Color	Silver
Fan	Single 4020mm DC Fan
Size	*150(L)82(W)40.5(H)mm*
Protection	OCP,OVP,UVP,OPP,Short Circuit Protection

Input Characteristic:

Input Voltage range	90-264Vac
Input Voltage frequency	47-63H_Z
Life cycle	100,000 hrs minimum(at 25℃)
Input Current	5A at 115V; 3A at 230V

Output Characteristic:

Voltage	+5	+12V	-12V	+3.3V	+5Vsb
MIN	0.2	0.5	0.0	0.1	0.0
NOM	7	7	0.25	7	1
MAX	14	14	0.5	14	2
UNITS	AMPS	AMPS	AMPS	AMPS	AMPS

1) Total DC output power must not exceed 180W

2) +5V and +3.3V total output power must not exceed 80W

3) +5V, +3.3V, +12V total output power must not exceed 164W

Operational environment:

Working temperature	0℃ to 50℃
Storage temperature	-40℃ to 80℃
Working humidity	20% to 85%, non-condensing
Storage temperature	10% to 95%, non-condensing
