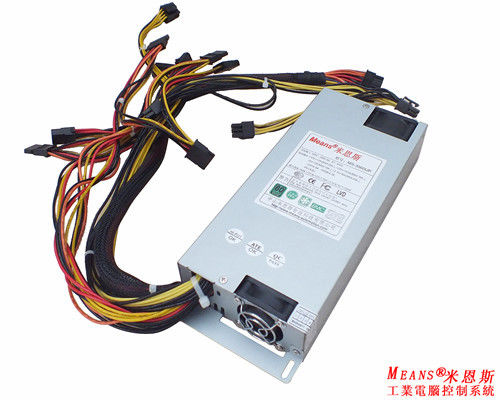

500W IPC Power supply

Product Details:

Place of Origin:	China
Brand Name:	Means
Certification:	ROHS
Model Number:	MS-3560UP

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag, carton
Delivery Time:	15 days
Payment Terms:	TT
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

MS-3560UP

● Confirm 80PLUS
● Confirm IPC 1Uersion

● Output Capacity: 460 Watts Continuous
● Low Ripple & Noise & High efficiency

● Wide input valtage:90-264vac
● Operation Temperature:0~50℃
● Dimension: 220* 100 *40.5mm
● Double Single :4028mm*1 Dual ball Low-Noise Fan
● Life expectancy: MTBF :≥100kh hours

● APFC(PFC>99%)
● Multiple Protections Function:(OCP,OVP,UVP,OPP)
● Safety Approvals:CE,FCC,CB

Output Connectors:

20+4Pin

M/B

4+4Pin
CPU

5 Pin
SATA

big 4 Pin
Molex

4 Pin
FDD

Specification:

Output Wattage	460W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.3 KG
Color	Silver
Fan	Double fan: 40281；40151
Dimension	220 (L) x 100(W) x 40.5(H)mm
Protection	OCP,OVP,UVP,OPP,Short Circuit Protection

INPUT
Input Voltage	90-264Vac
Input Frequency	47 ~ 63 Hz
MTBF	100,000 hrs minimum (at 25 ℃)
Input Current	10A at 115V, 5A at 230V

OUTPUT
Voltage	+5V	+12V1	+12V2	-12V	+3.3V	+5Vsb
MIN	0.2	0.1	0.5	0.0	0.1	0.0
NOM	15	9	10	0.25	10	1.25
MAX	30	18	20	0.5	20	2.5
Units	AMPS	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 460Watts. 2) +5V and +3.3V outputs shall not exceed 162 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 445 Watts.

Environment
Operation Temperature	0 ℃ to 50 ℃
Storage Temperature	-40 ℃ to 80℃
Operation Humidity	20% to 85%, non-condensing
Storage Humidity	10% to 95%, non-condensing
