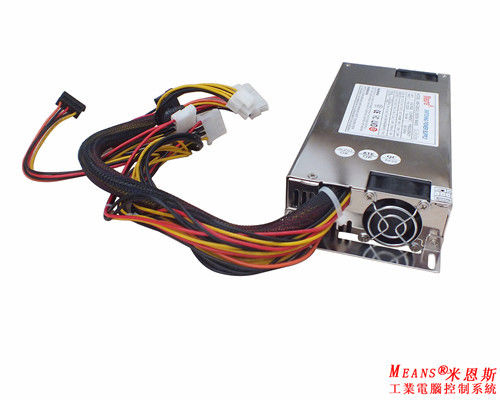

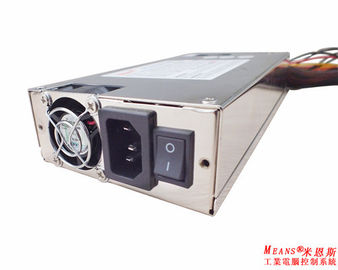

350W IPC Power supply

Product Details:

Place of Origin:	China
Brand Name:	Means
Certification:	ROHS
Model Number:	MS-3350U

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag, carton
Delivery Time:	15 days
Payment Terms:	TT
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

MS-3350U

● Conformed to IPC 1U Type
● Output Capacity: 250Watts(MAX 350W)
● Low Ripple & Noise
● Operation Temperature:0~50℃
● Dimension: 200* 100 *40.5mm
● 40mm Low-Noise Fan
● Life expectancy: MTBF >100,000 hours
● Multiple Protections Function:(OCP,OVP,UVP,OPP)
● Safety Approvals:CE, FCC

Output Connectors:


20+4Pin M/B	4+4Pin CPU	5 Pin SATA	Big 4 Pin Molex
1	1	3	3

Specification:

Output Wattage	250W
Efficiency	> 78 % Full loading
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2 KG
Color	Silver
Fan	Two 4020*2
Dimension	200mm (L) x 100mm(W) x 40.5mm(H)
Protection	OCP,OVP,UVP,OPP,Short Circuit Protection

INPUT
Input Voltage	180-264Vac
Input Frequency	47 ~ 63 Hz
MTBF	100,000 hrs minimum (at 25 ℃)
Input Current	4A at 220-230V

OUTPUT
Voltage	+5V	+12V	-12V	+3.3V	+5Vsb
MIN	1	0.5	0.0	0.5	0.0
NOM	7	9	0.25	8	1
MAX	14	18	0.5	16	2
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 250 Watts. 2) +5V and +3.3V outputs shall not exceed 110 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 235 Watts.

Environment
Operation Temperature	0 ℃ to 50 ℃
Storage Temperature	-40 ℃ to 80℃
Operation Humidity	20% to 85%, non-condensing
Storage Humidity	10% to 95%, non-condensing
