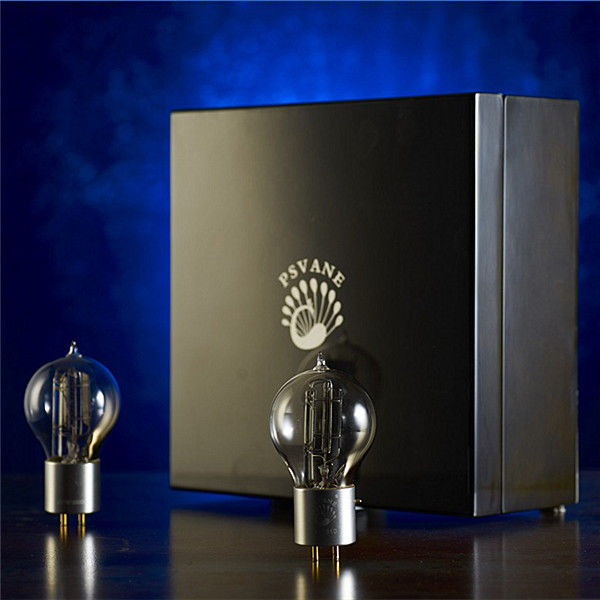

#WE101D-L,PSVANE TUBES,WE-Series.

#WE101D-L,PSVANE TUBES,WE-Series.

    • #WE101D-L,PSVANE TUBES,WE-Series.
    • #WE101D-L,PSVANE TUBES,WE-Series.
    • #WE101D-L,PSVANE TUBES,WE-Series.
    • #WE101D-L,PSVANE TUBES,WE-Series.
  • #WE101D-L,PSVANE TUBES,WE-Series.

    Product Details:

    Place of Origin: China
    Brand Name: PSVANE
    Certification: ROHS
    Model Number: WE101D-L
    Contact Now
    Detailed Product Description

    The difference between WE101D and WE101D-L is pin, WE101D needs to match original WE-style tube socket, while WE101D-L only need flat quadrangle tube socket.

    Electrical parameter             rating value    unit
     Direct Interelectrode Capacitances
     Input                                           4.8         uuF
     Output                                        5.2         uuF
     Grid to plate                             ≤ 3.3         uuF

    Typical operating parameter
    Heater voltage                              4.5      V
    Heater current                              1.0      A
    Ua                                                190     V
    Ug                                                -18      V
    Ia                                                 6.4       mA

    Electrical parameter—absolute maximum ratings     minimum maximum unit
    Heater voltage                                                                  4         5         V
    Ua                                                                                    -         300      V
    Pa                                                                                    -         15        W
    Ia                                                                                      -         30      mA
