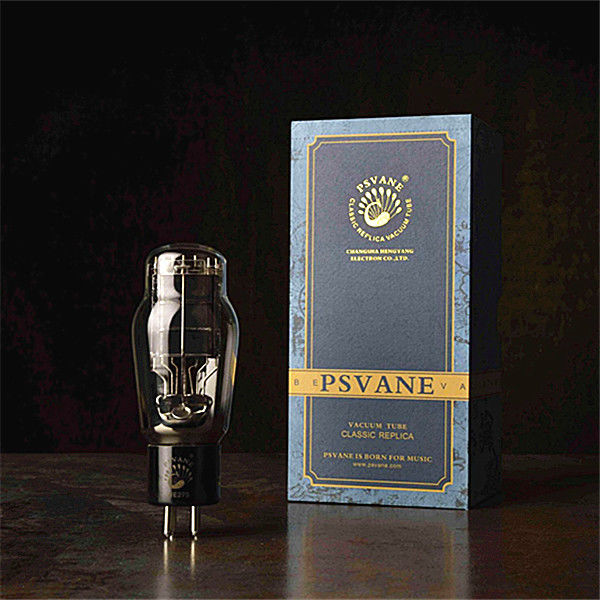

#WE275,PSVANE TUBES,WE-Series.

#WE275,PSVANE TUBES,WE-Series.

    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.
    • #WE275,PSVANE TUBES,WE-Series.

    Product Details:

    Place of Origin: China
    Brand Name: PSVANE
    Certification: ROHS
    Model Number: WE275
    Contact Now
    Detailed Product Description

    Western Electric 275 is one of the rare buried products in all the works of Western Electric Vacuum Tubes.
    It's all because the company designed the tube with a 5 volt filament.However,Its sound performance is the best in 2A3 made by other factories.On the basis of keeping the sound characteristics of Western Electric 275,PSVANE changed the 5 volt filament to 2.5 volt and maintained the generality of 2A3.Except that,the two products are almost exactly the same in appearance,structure,material and workmanship.That again shows the concept of "Only the legend can surpass the legend".

    Heater
    Uf………………2.5V
    If…………….... 2.5A

    Static Parameter
    Ua……………………250V
    -Ug………………… 60V
    Ia……………………53mA
    Gm…………………2.8 mA/V
    ri……………………1 KΩ
    u ……………………2.8
    Pout…………………3.1W

    Maximum Rating
    Ua……………300V
    Pa………17W

    Ik
    with cathode bias………………80 mA
    with fixed bias……………70 mA
    Direct Interelectrode Capacitances
    Grid to plate ……………12PF
    Grid to filament ……………6.8PF
    Plate to filament……………3.2PF
