#WE205-L,PSVANE TUBES,WE-Series.

Product Details:

Place of Origin:	China
Brand Name:	PSVANE
Certification:	ROHS
Model Number:	WE205-L

Contact Now

Detailed Product Description

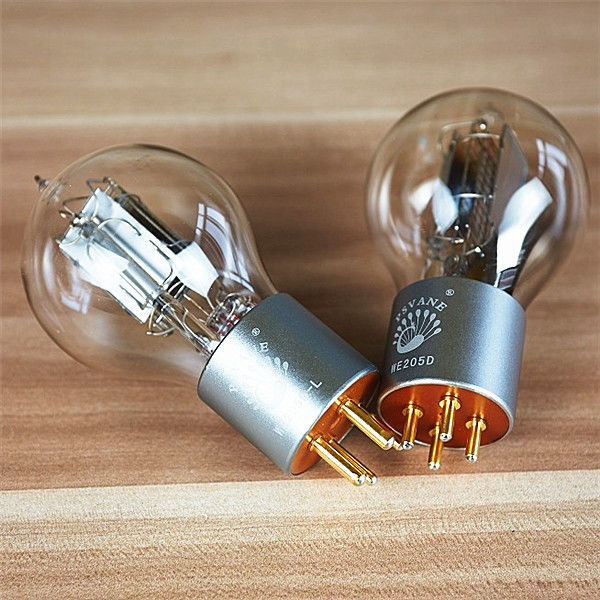

The difference between WE205D and WE205D-L is pin, WE205D needs to match original WE-style tube socket, while WE205D-L only need flat quadrangle tube socket.

Electrical parameter rating value unit

Direct Interelectrode Capacitances

Input 4.8 uuF

Output 5.2 uuF

Grid to plate ≤ 3.3 uuF

Typical operating parameter

Heater voltage 4.5 V

Heater current 1.6 A

Ua 300 V

Ug -30 V

Ia 8 mA

Amplification coefficient 6.7

Pout ≥ 800 mW

Electrical parameter—absolute maximum ratings

minimum maximum unit

Heater voltage 4 5 V

Ua - 400 V

Pa - 15 W

Ia - 50 mA
