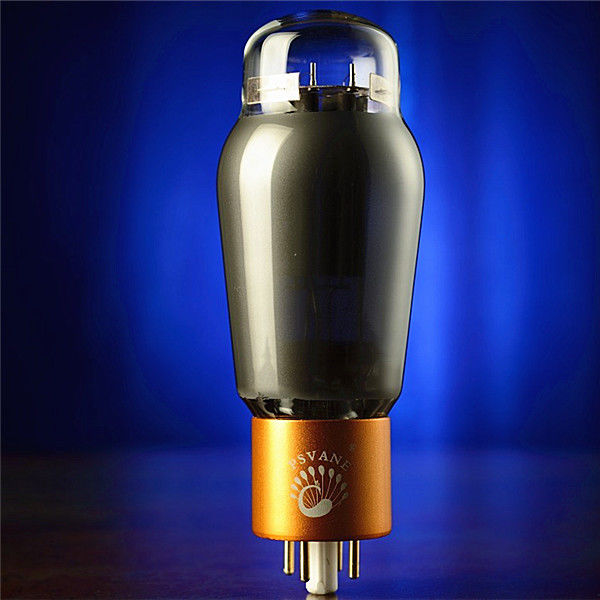

#274B-TII,PSVANE TUBES,TII-Series.

#274B-TII,PSVANE TUBES,TII-Series.

    • #274B-TII,PSVANE TUBES,TII-Series.
    • #274B-TII,PSVANE TUBES,TII-Series.
    • #274B-TII,PSVANE TUBES,TII-Series.
  • #274B-TII,PSVANE TUBES,TII-Series.

    Product Details:

    Place of Origin: China
    Brand Name: PSVANE
    Certification: ROHS
    Model Number: 274B-TII
    Contact Now
    Detailed Product Description

    TII-Series: Positioning in exceeding totally, not only exceed all the same types of productions that always been imitating on the market, but also to exceed itself.

    Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.

    Heater
    Uf………………5V
    If……………....2.5A

    Maximum Rating
    anode inverse peak voltage……………1550V
    anode peak current        ………750mA

    Recommend working condition
    Anode supply voltage             2×500V
    Each arm impedance               75Ω
    load impedance                      2000Ω
    Filter capacitor                        4μF
    Rectifier current                     ≧220mA
