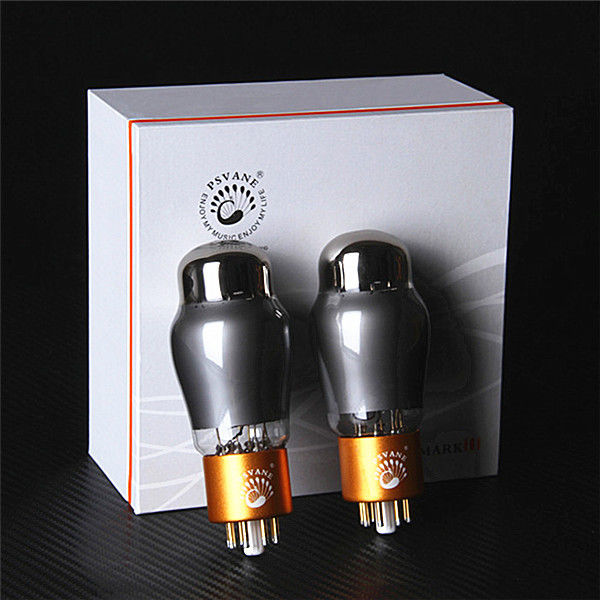

#CV181-TII,PSVANE TUBES,TII-Series.

Product Details:

Place of Origin:	China
Brand Name:	PSVANE
Certification:	ROHS
Model Number:	CV181-TII

Contact Now

Detailed Product Description

TII-Series: Positioning in exceeding totally, not only exceed all the same types of productions that always been imitating on the market, but also to exceed itself.

CV181-TII is double triode, used in voltage amplification circuit, Can be replaced directly by 6N8P and 6SN7GT.

Heater

UH………… 6.3 V

IH ………… 0.6 A

Static Parameter

Ua ……………………....…90 250 V

Ug………………………..…0 -8V

Ia…………………………...10 9 mA

Gm…………………………3 2.6 mA/V

Ri…………………………..6.7 7.7 kΩ

μ…………………………...20 20

Ia when Ug=-12.5V _ 1.3mA

Ug whenIa=-10uA - 7 -18V

Maximum Rating

class A1

Ua…………………………450V

Ik…………………………-20mA

Pa…………………………5w

Pa(No.1+No2)…………..7w

Rg………………............1MΩ

Uhk………..........………±100V
