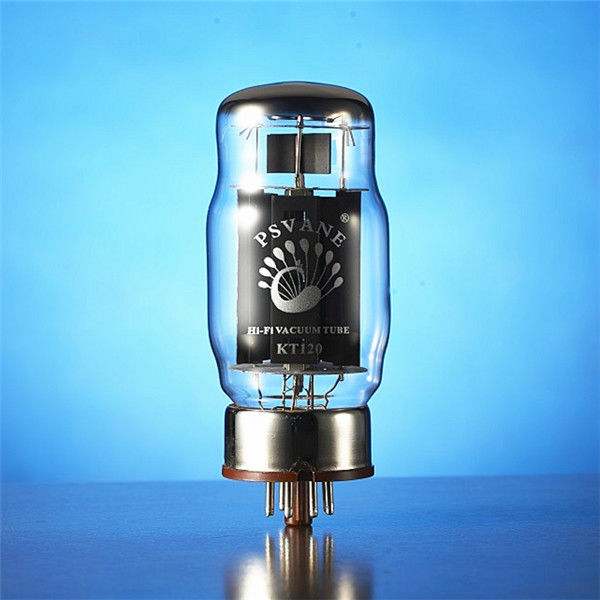

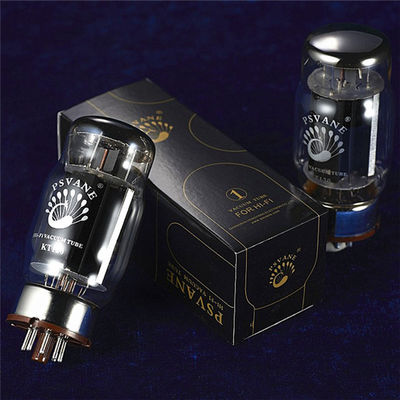

#KT120,PSVANE TUBES,Hi-Fi Series.

#KT120,PSVANE TUBES,Hi-Fi Series.

    • #KT120,PSVANE TUBES,Hi-Fi Series.
    • #KT120,PSVANE TUBES,Hi-Fi Series.
    • #KT120,PSVANE TUBES,Hi-Fi Series.
    • #KT120,PSVANE TUBES,Hi-Fi Series.
  • #KT120,PSVANE TUBES,Hi-Fi Series.

    Product Details:

    Place of Origin: China
    Brand Name: PSVANE
    Certification: ROHS
    Model Number: KT120
    Contact Now
    Detailed Product Description

    The king of pentode in PSVANE—KT120
     Its screen consumption -- 60 W and push-pull output --110W, which can never be beat.
     It adopts the unique mould screen that vintage-style English tubes have, reappearing to the perfect and attractive ancient English sound.
     It inherits the unique sound style and music inner meaning of PSVANE.
     It has an amazing sound feature, that is, broader, more exquisite and sweet than KT88.
     It has the most authoritative dynamic and LF performance, which serves you the most exciting and real listening experience and extremely broad frequency response.
     It is more tasteful in musicianship, more intensified and real in texture, more wonderful and rich in manner than prototype tubes.
    PSVANE, the world’s leading high-end tube brand.

    KT120 is beam-tetrode power amplifier, with limited Pa—60W. In audio frequency amplifier, two tubes as AB1 push-pull can gain 110W when outputs.


    Heated
    UH……..............6.3V
    IH……............…1.95A
    Maximum Rating
    Ua……………….850V
    Ug2………..........650V
    Ug1…………......-200V
    Pa………………..60W
    Pg2……………...8W
    Ik………..............250mA
    Uh-k…................300V
    Rg1
    Fixed bias……….……51K
    Cathode bias…………240K
    Tbulb…………….……250C

    Direct Interelectrode Capacitances
    Input……………...……29 PF
    Output…………………10PF
    Grid to plate…….……1.8PF

    A1 single-ended output
    Ua………………400V
    Ug2…………….225V
    Ug1…………....-14V
    Pa……………...60W
    Ig2……………..14mA
    Ik……………….135~165mA
    Transconductance………14mA/V
    Rl…………………………3K
    Output power……………20W
    THD <  14%


    #KT120,PSVANE TUBES,Hi-Fi Series.
    #KT120,PSVANE TUBES,Hi-Fi Series.
    #KT120,PSVANE TUBES,Hi-Fi Series.


    Up till now, PSVANE has been the lead and noble in the field of tube sales. Not only had it been well received by users, but also even some amplifiers at home and abroad has had upgraded to add PSVANE as a selling point.
    PSVANE always front in R&D of tubes. Till 2013, PSVANE has accumulated the power to launch nearly 10 types of new items constantly, and all types are the tops in market, which gained numerous praises.
    As the most promising products, three new items naming UK are ready to have a grand listing.
    UK-EL34, UK-KT88, UK-6SN7, which are PSVANE HI-FI series, have the greatest cost performance that have never seen in history.
    These are the items that PSVANE European R&D team has spent nearly one year to produce. Having received constructional dissection in many types of classical English and Swedish prototype tubes that are the same size but were produced in different periods, analyzed one by one and copied materials to ask the most stability and greatest sound performance, even received many times of revises of sound performance that across the ocean, our team still hold the belief that has a sensitive feeling about products as artists and be persistent like craftsmen, also keep the ancient and precise handwork skill:
    Three types of items all adopt the most English sound- tasted plate material—“Mould Screen”, and all integrate with the symbolized musicality and emotional attractiveness that PSVANE have, we believe what you are going to get are the most sound-tasted tube that are the same price;
    With vintage style as prerequisite, having respected and followed structural design and material use of the earlier classical same size tubes, we preserve the original structure and sound performance of three items.
      To ensure the durability and detail transformation of our products, we still use the gold-painting technology to base pin even in low selling price.
