|Place of Origin:||China|
|Minimum Order Quantity:||200pcs|
|Payment Terms:||TT,Paypal,Western Union|

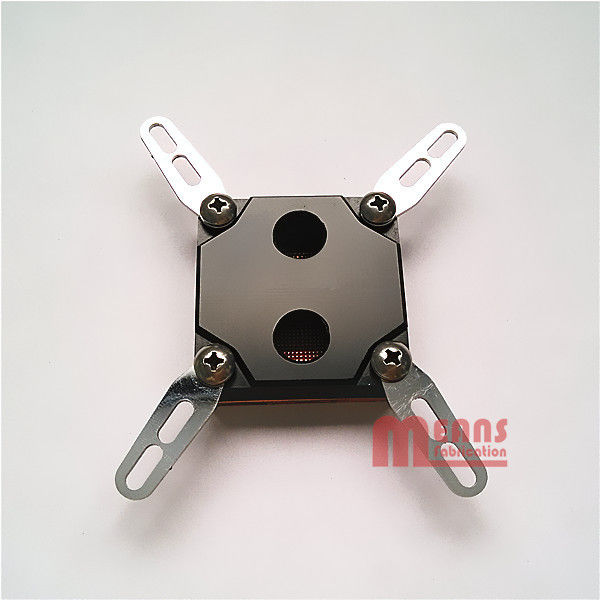

1. Silver alloying brazing water block
The CPU water block MS-030K-AL is made of pure copper material which is soldered by silver alloying brazing different
From other water block locked by screws and plastic O-rings. With the pure copper and silver alloying brazing
Manufacture, the CPU water block MS-030K-AL presents outstanding heat transfer efficiency even if in low water flow rate.
2. Intel and AMD socket compatibility & Easy installation.
The clips of CPU water block MS-030K-AL supports INTEL LGA 2011/1366/1156/775 and AMD Socket 754/939/940/AM2/AM2+/AM3 platforms.
The universal strengthened back-plate not only prevents M/B distortion but also has high compatible installation for all kinds of MBs.
3. Nickel-Planted and mirror polishing treatment on copper base
The high quality nickel-plated and polishing treatment on the base of the water block ensures excellent
Surface contact with heat source and enhances heat transfer efficiency.
4. 3D micro-fin structure and inner micro channel design
CPU water block MS-030K-AL adapts 3D micro-fin structure design to form compact inner micro channel.
The compact micro-fin structure increases the surface area of heat transfer to enhance thermal performance under low water flow rate.
5. Easy installation
The CPU WB MS-030K-AL is easy to install the water cooling loop and the 1/4”(OD8mm / ID 6mm) and 3/8”(OD 12.7mm / ID 9.5mm) (G 1/4” thread )tube enables upgrade to install series of water blocks. It is easy to replace between 1/4”,3/8” and 1/2”tube.The horse clip (clamp) is also easy to install. The clip of CPU water block MS-030K-AL supports most of motherboard in the world.
CPU socket comatibility:
Installation size: 69-80mm, For 4-Holes(see drawing)
Material: 12mm Aluminum(Black), 1.5mm Stainless steel, 3mm Red Copper.
Stainless steel Finish: Nickel/Chrome Mirror polishing treatment / Black
Red copper Finish: Mirror polishing treatment
Aluminum Finish: Oxidation treatment,Standard colors:Black/Orange
The Colors Can be customized(Black/Orange/Red/Blue......)
