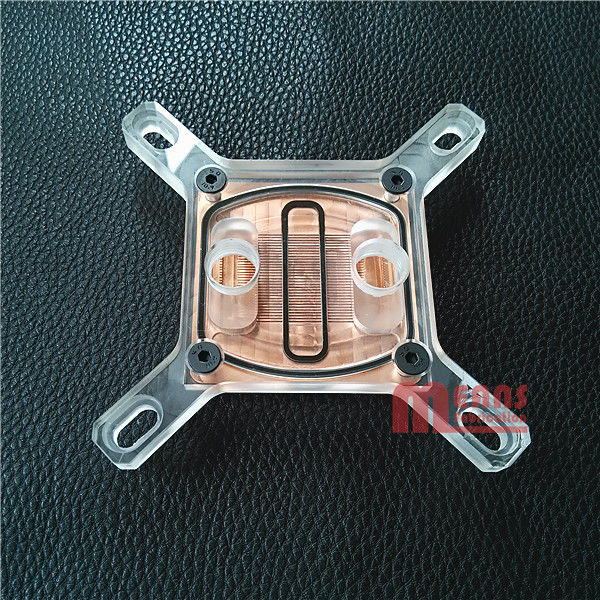

Computer CPU Water Blocks,Radiator. Red copper Backboard,Rubber Gasket.
Olny for INTEL Motherboard
1. Silver alloying brazing water block
The CPU water block MS-046-AC is made of pure copper material which is soldered by silver alloying brazing different
From other water block locked by screws and plastic O-rings. With the pure copper and silver alloying brazing
Manufacture, the CPU water block MS-046-AC presents outstanding heat transfer efficiency even if in low water flow rate.
2. Intel socket compatibility & Easy installation.
The clips of CPU water block MS-046-AC supports INTEL LGA 2011/1366/1156/775.
The universal strengthened back-plate not only prevents M/B distortion but also has high compatible installation for all kinds of MBs.
3. Mirror polishing treatment on copper base
The high quality polishing treatment on the base of the water block ensures excellent
Surface contact with heat source and enhances heat transfer efficiency.
4. 3D micro-fin structure and inner micro channel design
CPU water block MS-046-AC adapts 3D micro-fin structure design to form compact inner micro channel.
The compact micro-fin structure increases the surface area of heat transfer to enhance thermal performance under low water flow rate.
5. Easy installation
The CPU WB MS-046-AC is easy to install the water cooling loop and the 1/4”(OD8mm / ID 6mm) and 3/8”(OD 12.7mm / ID 9.5mm) (G 1/4” thread )tube enables upgrade to install series of water blocks. It is easy to replace between 1/4”,3/8” and 1/2”tube.The horse clip (clamp) is also easy to install. The clip of CPU water block MS-046-AC supports most of motherboard in the world.
CPU socket comatibility:
-
Supports Intel LGA 775,LGA 1150/1155/1156,LGA1366 ,LGA2011
-
Red Copper Backboard
-
Roof cover, Two kinds of materials: POM black or PMMA transparent.
-
The Bracket is stainless steel, plating finish.
-
Standard interface
Specification:
Size: 60(L)*60(W)*16(H)mm
Installation size: 69-80mm, For 4-Holes(see drawing)
Material: 12mm Acrylic(Transparent),4mm Red Copper.
Acrylic Finish: Mirror polishing treatment
Red copper Finish: Mirror polishing treatment
Weight: 132g
