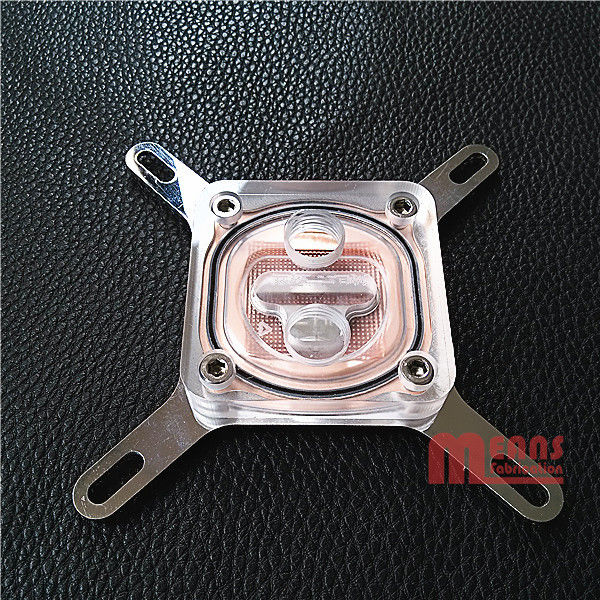

CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs

CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs

    • CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs
    • CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs
    • CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs
  • CPU Water block,Radiator,MS-024-AC,Acrylic/Stainless steel/Red copper.Rohs

    Product Details:

    Place of Origin: China
    Brand Name: Means
    Certification: Rohs
    Model Number: MS-024-AC

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: 20pcs/Carton
    Delivery Time: 15days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 5000pcs/Month
    Contact Now
    Detailed Product Description

    Computer CPU Water Blocks,Radiator. Red copper Backboard,Rubber Gasket.

    Olny for INTEL Motherboard.

    1.  Silver alloying brazing water block

    The CPU water block MS-024-AC is made of pure copper material which is soldered by silver alloying brazing different

    From other water block locked by screws and plastic O-rings. With the pure copper and silver alloying brazing

    Manufacture, the CPU water block MS-024-AC presents outstanding heat transfer efficiency even if in low water flow rate.

    2.  Intel socket compatibility & Easy installation.

    The clips of CPU water block MS-024-AC supports INTEL LGA 2011/1366/1156/775

    The universal strengthened back-plate not only prevents M/B distortion but also has high compatible installation for all kinds of MBs.

    3.  Nickel-Planted and mirror polishing treatment on copper base

    The high quality nickel-plated and polishing treatment on the base of the water block ensures excellent

    Surface contact with heat source and enhances heat transfer efficiency.

    4. 3D micro-fin structure and inner micro channel design

    CPU water block MS-024-AC adapts 3D micro-fin structure design to form compact inner micro channel.

    The compact micro-fin structure increases the surface area of heat transfer to enhance thermal performance under low water flow rate.

    5.  Easy installation

    The CPU WB MS-024-AC is easy to install the water cooling loop and the 1/4”(OD8mm / ID 6mm) and 3/8”(OD 12.7mm / ID 9.5mm) (G 1/4” thread )tube enables upgrade to install series of water blocks. It is easy to replace between 1/4”,3/8” and 1/2”tube.The horse clip (clamp) is also easy to install. The clip of CPU water block MS-024-AC supports most of motherboard in the world.

    CPU socket comatibility:

    • Supports Intel LGA 775,LGA 1150/1155/1156,LGA1366 ,LGA2011
    • Red Copper Backboard
    • Roof cover, Two kinds of materials: POM black or PMMA transparent.
    • The Bracket is stainless steel, plating finish.
    • Standard interface

    Specification:

    Size: 50(L)*50(W)*15(H)mm

    Installation size: 71-82mm, For 4-Holes(see drawing)

    Material: Acrylic(Transparent), Stainless steel, Red Copper.

    Stainless steel Finish: Nickel/Chrome Mirror polishing treatment / Black

    Red copper Finish: Mirror polishing treatment

    Weight: 110g
