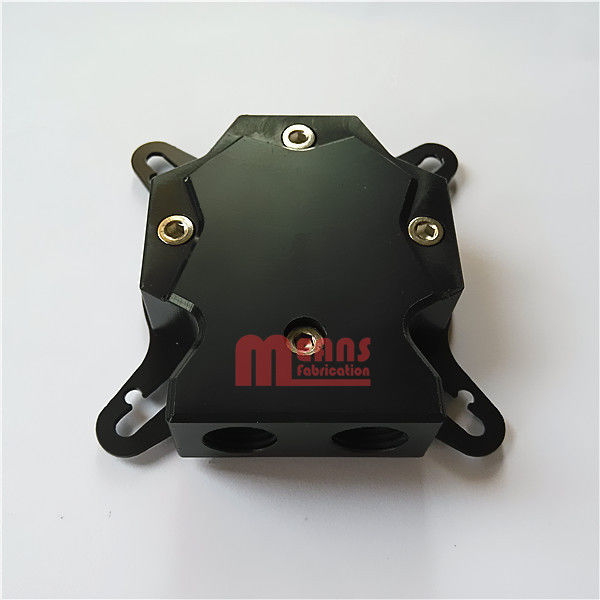

VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs

VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs

    • VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs
    • VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs
    • VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs
    • VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs
  • VGA Water Blocks,Radiator,MS-033-PO,POM/Stainless steel/Red copper.Rohs

    Product Details:

    Place of Origin: China
    Brand Name: Means
    Certification: Rohs
    Model Number: MS-033-PO

    Payment & Shipping Terms:

    Minimum Order Quantity: 200pcs
    Packaging Details: 20pcs/Carton
    Delivery Time: 15days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 5000pcs/Month
    Contact Now
    Detailed Product Description

    Computer VGA Water Blocks,Radiator. Red copper Backboard,Rubber Gasket. nVIDIA and AMD VGA all-purpose.

    1.  Silver alloying brazing water block

    The VGA water block MS-033-PO is made of pure copper material which is soldered by silver alloying brazing different From other water block locked by screws and plastic O-rings. With the pure copper and silver alloying brazing

    Manufacture, the VGA water block MS-033-PO presents outstanding heat transfer efficiency even if in low water flow rate.

    2.  Nickel-Planted and mirror polishing treatment on copper base

    The high quality nickel-plated and polishing treatment on the base of the water block ensures excellent

    Surface contact with heat source and enhances heat transfer efficiency.

    3. 3D micro-fin structure and inner micro channel design

    VGA water block MS-033-PO adapts 3D micro-fin structure design to form compact inner micro channel.

    The compact micro-fin structure increases the surface area of heat transfer to enhance thermal performance under low water flow rate.

    4. nVIDIA and AMD Radeon socket compatibility

    The clips of VGA water block 20 supports nVIDIA GF, GT and GTX series and AMD Radeon series platforms. The universal strengthened back-plate not only prevents M/B distortion but also has high compatible installation for all kinds of MBs.

    5.  Easy installation

    The VGA WB MS-033-PO is easy to install the water cooling loop and the 1/4”(OD8mm / ID 6mm) and 3/8”(OD 12.7mm / ID 9.5mm) (G 1/4” thread )tube enables upgrade to install series of water blocks. It is easy to replace between 1/4”,3/8” and 1/2”tube.The horse clip (clamp) is also easy to install. The clip of VGA water block MS-033-PO supports most of motherboard in the world.

    VGA socket compatibility:

    • Supports NVIDIA platforms GF210/GT610/620/630/640 GTX650/660/670/690/760/770/780/GITAN
    • Supports AMD Radeon 5450/R7-240/R7-250/R7-260/R9-270/R9-270X/R9-280X/R9-290/7750/7770/7790/7990
    • The thermal efficiency of the system reaches 280W
    • Red Copper Backboard
    • Roof cover, Two kinds of materials: POM black or PMMA transparent.
    • The Bracket is stainless steel, plating finish.
    • Standard interface

    Specification:

    Size: 66(L)*56(W)*22(H)mm

    Installation size: 43-62mm, For 4-Holes(see drawing)

    Material: 19mm POM(black), 1.5mm Stainless steel, 3mm Red Copper.

    Stainless steel Finish: Nickel/Chrome Mirror polishing treatment / Black

    Red copper Finish: Mirror polishing treatment

    Weight: 129g
