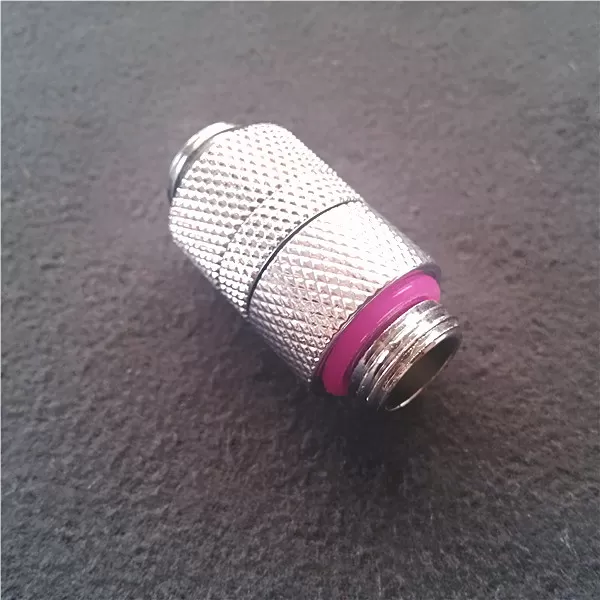

G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.

Product Details:

Place of Origin:	China
Brand Name:	Means
Certification:	Rohs
Model Number:	MS-CF006N

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	20pcs/Carton
Delivery Time:	15days
Payment Terms:	TT,Paypal,Western Union
Supply Ability:	5000pcs/Month

Contact Now

Detailed Product Description

G1/4" Thread 3/8"(9.5mm)ID x 1/2"(12.7mm) OD Compression Fitting(Nickel Plating),MS-CF006N takes a high quality of manufacturing, colors and choice. The inner diameter of the fitting truly provides the smooth and high flow.The series of tube connectors are designed to look elegant in PC water cooling system.

MS-CF006N is easy to install due to the 3/8” tube (ID-9.5mm OD-12.7mm) (G1/4”) and 3/8” bolts and also enables to connect pumps, water blocks, radiators and tank.

The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. The MS-CF006N is hi-quality brass material and high durability nickel finished.

Easily Connect Components and Avoiding Coolant Leakage

MS-GF006N is easy to install due to the 3/8” tube (ID-9.5mm

OD-12.7mm) (G1/4”) and 3/8” hose clip (clamp) and also enables to connect pumps, water blocks, radiators and tank. The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. ong-lasting thermal conductivity.

Specifications:

Height: 28mm

Thread Type: G1/4"(1/4PF)

G1/4" Thread Length: 5mm

Upper Thread Type and Length:(M)15 x (P)1.0 x 5mm

G1/4" Material:Brass(Copper)

Finish: Nickel plating

Weight: 15.5g

Nut Length: 12.5mm

Nut Inner Diameter: 12.7mm for tube 3/8"

Nut Outer Diameter: 18mm

Nut Thread Length: (M)15*(P)1.0 X 7mm
