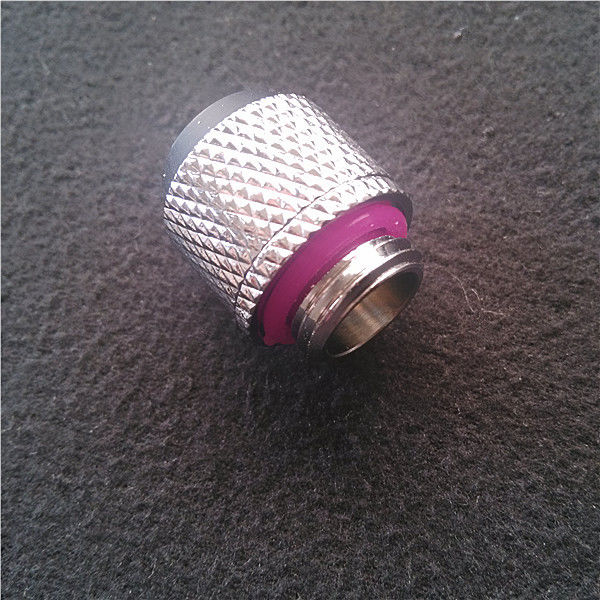

G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.

G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.

    • G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.
    • G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.
  • G1/4” Thread 3/8"X1/2" Compression Fitting,Nickel plating.

    Product Details:

    Place of Origin: China
    Brand Name: Means
    Certification: Rohs
    Model Number: MS-CF004N

    Payment & Shipping Terms:

    Minimum Order Quantity: 200pcs
    Packaging Details: 20pcs/Carton
    Delivery Time: 15days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 5000pcs/Month
    Contact Now
    Detailed Product Description

    G1/4" Thread 3/8"(9.5mm)ID x 1/2"(12.7mm) OD Compression Fitting(Nickel Plating),MS-CF004N takes a high quality of manufacturing, colors and choice. The inner diameter of the fitting truly provides the smooth and high flow.The series of tube connectors are designed to look elegant in PC water cooling system.

    MS-CF004N is easy to install due to the 3/8” tube (ID-9.5mm OD-12.7mm) (G1/4”) and 3/8” bolts and also enables to connect pumps, water blocks, radiators and tank.
    The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. The MS-CF004N is hi-quality brass material and high durability nickel finished.

    Easily Connect Components and Avoiding Coolant Leakage

    MS-GF004N is easy to install due to the 3/8” tube (ID-9.5mm

    OD-12.7mm) (G1/4”) and 3/8” hose clip (clamp) and also enables to connect pumps, water blocks, radiators and tank. The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. ong-lasting thermal conductivity.

    Specifications:
    Height: 24mm
    Fitting Inner Diameter: 8.5mm
    Fitting Tube Diameter: 3/8" tube (ID9.5mm OD 12.7mm)
    Thread Type: G1/4"(1/4PF)
    G1/4" Thread Length: 5mm
    Upper Thread Type and Length:(M)15 x (P)1.0 x 5mm
    G1/4" Material:Brass(Copper)
    Finish: Nickel plating
    Weight: 15.5g

    Nut Length: 13mm
    Nut Inner Diameter: 12.7mm for tube 3/8"
    Nut Outer Diameter: 18mm
    Nut Thread Length: (M)15*(P)1.0 X 7mm
    Material: Brass(Copper)
    Finish: Nickel plating
    Weight: 3.5g

    MS-CF002N Weight: 19g
