AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
    • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
  • AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    Product Details:

    Place of Origin: China
    Brand Name: MOPAWIN
    Certification: Rohs
    Model Number: MS-60035

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Packaging Details: 100pcs
    Delivery Time: 7 days
    Payment Terms: TT
    Supply Ability: 50000pcs/month
    MOQ:: 1000pcs
    Contact Now
    Detailed Product Description



    Patent No.: ZL2013 3 0227658.2    for the Appearance

    Patent No.: ZL2013 2 0314721.0    for utility models

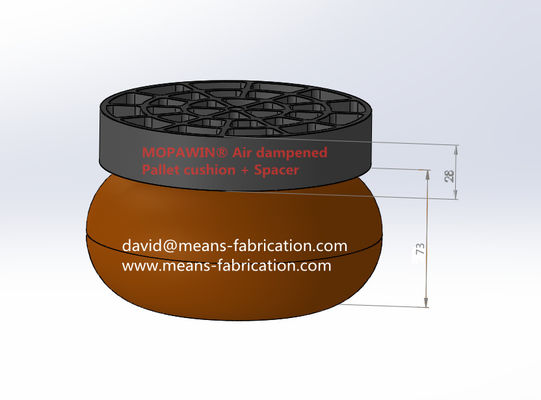

    MOPAWIN® AIR DAMPENED PALLET CUSHION & PALLET CUSHION + SPACER
    Air cushioned pallet protection providing protection where it's needed most



    Material:LDPE (Low-Density Polyethylene)

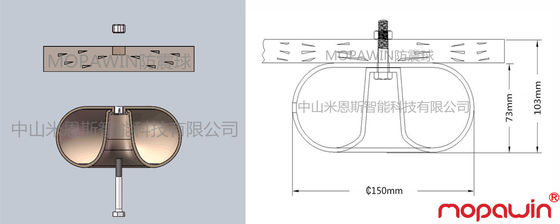

    Size:150*73mm
    Brand: MOPAWIN®

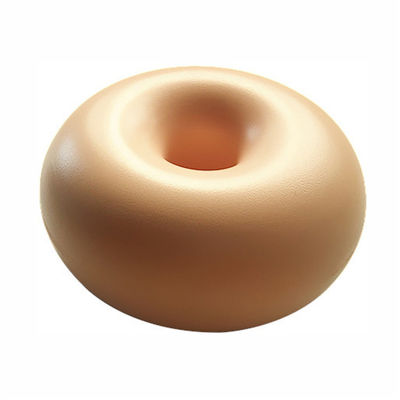

    PALLET CUSHIONS is an air damping device, which is installed on the bottom of the tray, with the lightest weight, minimum volume, to provide maximum damping, buffering function.

    PALLET CUSHIONS have Orange / Blue / yellow / Green / Tan 5 kinds of different colors, shockproof balls of different colors represent different bearing.

    please see Details as below:

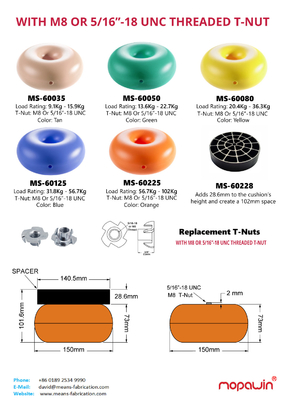

    Part No.

    Color

    Load Capacity

    Fixing

    Unit Weight

    MS-60035

    Tan

    9.1-15.9kg

    M8 T-Nut

    0.13kg

    MS-60050

    Green

    13.6-22.7kg

    M8 T-Nut

    0.14kg

    MS-60080

    Yellow

    20.4-36.3kg

    M8 T-Nut

    0.15kg

    MS-60125

    Blue

    31.8-56.7kg

    M8 T-Nut

    0.16kg

    MS-60225

    Orange

    56.7-102kg

    M8 T-Nut

    0.18kg





    Product performance:

    1. Repeated use, recycling value

    2. High and low temperature (-40 ℃, +54 ℃)

    3. Resistance to chemical corrosion resistance

    4. In the cement floor of gliding 900-1000 meters

    Suitable scope: suitable for packing and transportation in large machine / machinery, new cars and precision instruments heavyweight valuables or product etc.



    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES

    AIR DAMPENED PALLET CUSHIONS -TAN COLOR,ROHS,SKID-MATD,FOR PACKING IN WOODEN CASES
