Patent No.: ZL2013 3 0227658.2 for the Appearance
Patent No.: ZL2013 2 0314721.0 for utility models

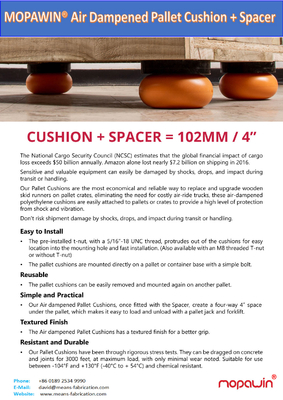

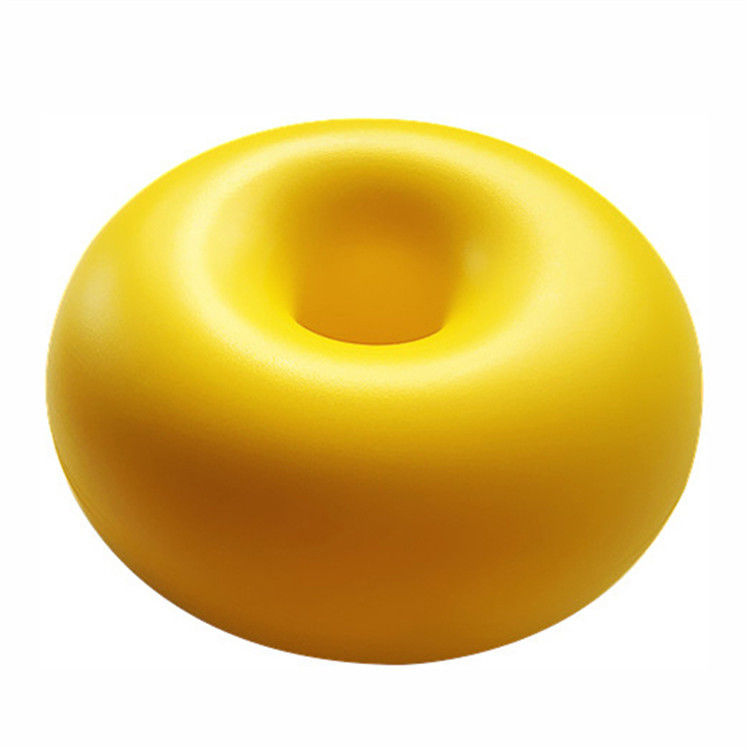

MOPAWIN® AIR DAMPENED PALLET CUSHION & PALLET CUSHION + SPACER
Air cushioned pallet protection providing protection where it's needed most
Material:LDPE (Low-Density Polyethylene)

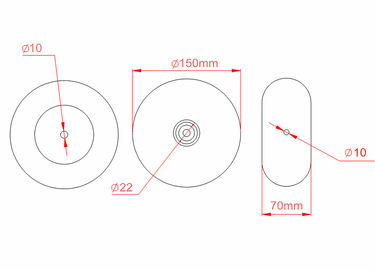

Size:150*73mm
Brand: MOPAWIN®

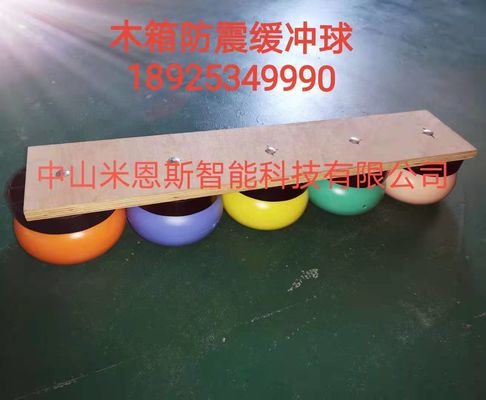

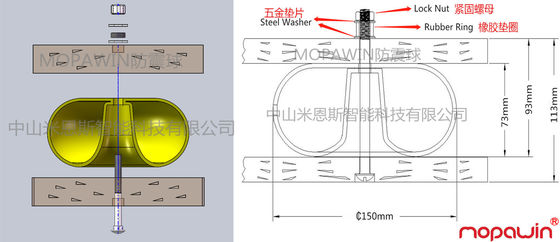

PALLET CUSHIONS is an air damping device, which is installed on the bottom of the tray, with the lightest weight, minimum volume, to provide maximum damping, buffering function.
PALLET CUSHIONS have Orange / Blue / yellow / Green / Tan 5 kinds of different colors, shockproof balls of different colors represent different bearing.
please see Details as below:
|

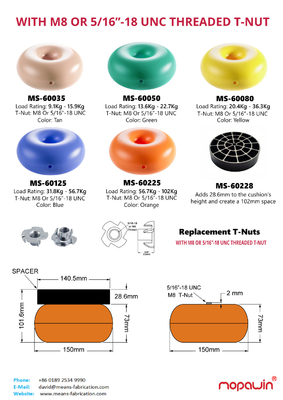

Part No.
|
Color
|
Load Capacity
|
Fixing
|
Unit Weight
|
|
MS-60035
|
Tan
|
9.1-15.9kg
|
M8 T-Nut
|
0.13kg
|
|
MS-60050
|
Green
|
13.6-22.7kg
|
M8 T-Nut
|
0.14kg
|
|
MS-60080
|
Yellow
|
20.4-36.3kg
|
M8 T-Nut
|
0.15kg
|
|
MS-60125
|
Blue
|
31.8-56.7kg
|
M8 T-Nut
|
0.16kg
|
|
MS-60225
|
Orange
|
56.7-102kg
|
M8 T-Nut
|
0.18kg
|
Product performance:
1. Repeated use, recycling value
2. High and low temperature (-40 ℃, +54 ℃)
3. Resistance to chemical corrosion resistance
4. In the cement floor of gliding 900-1000 meters
Suitable scope: suitable for packing and transportation in large machine / machinery, new cars and precision instruments heavyweight valuables or product etc.
