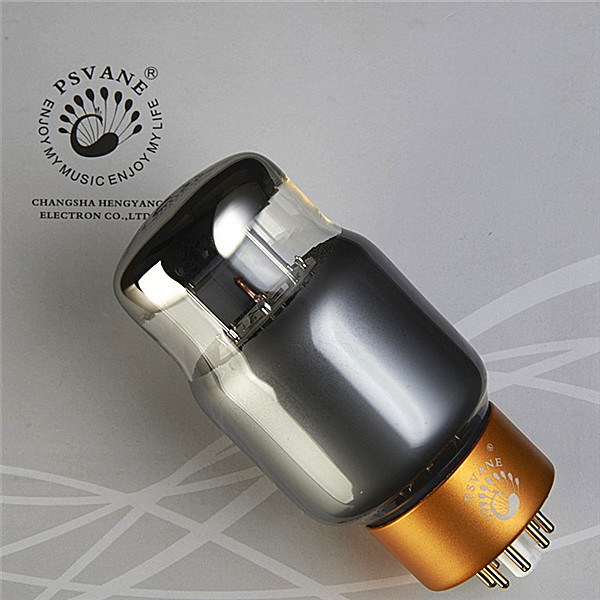

#KT88-TII,PSVANE TUBES,TII-Series.

#KT88-TII,PSVANE TUBES,TII-Series.

    • #KT88-TII,PSVANE TUBES,TII-Series.
    • #KT88-TII,PSVANE TUBES,TII-Series.
    • #KT88-TII,PSVANE TUBES,TII-Series.
    • #KT88-TII,PSVANE TUBES,TII-Series.
    • #KT88-TII,PSVANE TUBES,TII-Series.
  • #KT88-TII,PSVANE TUBES,TII-Series.

    Product Details:

    Place of Origin: China
    Brand Name: PSVANE
    Certification: ROHS
    Model Number: KT88-TII
    Contact Now
    Detailed Product Description

    TII-Series: Positioning in exceeding totally, not only exceed all the same types of productions that always been imitating on the market, but also to exceed itself.

    KT88-TII is a beam power tetreode, its anode limited dissipation power is 42W. In the audio amplifier, the power can be 100W when it is used as push-pull class AB1 with double tubes, it can also be used in electronic voltage regulator circuit. KT88-TII  is similar with CV5220 and 6550,they can be replaced by each other.

    Heater
    Uf  ……………6.3 V
    If………………1.6 A

    Maximum Rating
    Ua……………………800 V
    Ug2………………600 V
    Ug1………………-200 V
    Pa………………42 W
    Pg2…………8 W
    Ua+g2…………46 W
    Ik……………………230 mA
    Uh-k……………200 V
    Tbulb…………………250 C

    Rg1
    with cathode bias
    Pa+Pg2≤35W 0.47 MΩ
    Pa+Pg2 > 35W 0.27 MΩ
    with fixed bias
    Pa+Pg2≤35W 0.22 MΩ
    Pa+Pg2 > 35W 0.10 MΩ

    Direct Interelectrode Capacitances
    tetrode connection       triode connection
    input………16 9.3 PF
    output ……… 12 17PF
    grid to plate………1.2 7.9 PF

    tetrode connection
    Ua…………………… 250 V
    Ug2……………………250 V
    Ia ……………………140 mA
    Ig2(approx) ………3 mA
    -Ug1(approx)………15 V
    Gm ……………………12 mA/V
    ri ……………………12 KΩ
    Ug1-g2……………… 8
    ri ……………………670 Ω
    u………………………8

    triode connection
    Ua.g2…………………250 V
    Ia+g2…………………143 mA
    -Ug1(approx)………15 V
    Gm ……………………12 mA/V
