Name: 3 Pin SPDT 250V 15A ON-OFF-ON Black,Heavy Duty Toggle Switch.C513B,Rohs
Brand: Zhongshan Means Intelligent Technology Co.,Ltd
SKU: C513B
Availability: InStock

Home Products Switch

3 Pin SPDT 250V 15A ON-OFF-ON Black,Heavy Duty Toggle Switch.C513B,Rohs

Product Details:

Place of Origin:	China
Brand Name:	CNTD
Certification:	ROHS
Model Number:	C513B

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	PE bag,Carton
Delivery Time:	20days
Payment Terms:	TT/PayPal
Supply Ability:	200000pcs/Month

Contact Now

Detailed Product Description

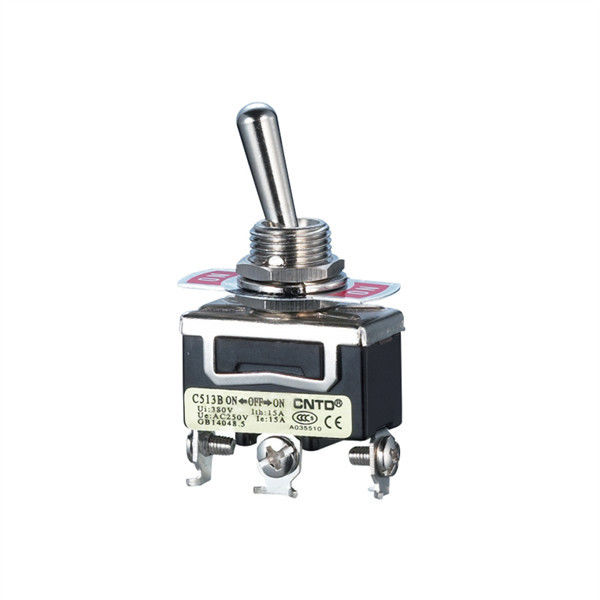

#C513B 3 Pin Single pole,Double throw,(Central OFF) 250V 15A ON-OFF-ON Black,Screw terminal.Heavy Duty Toggle Switch.Rohs.

Size: 29*16mm(see drawing)

The Current has 10A and 15A
Movement way has fixed type and auto-return type(Both single-throw and double-throw can return)
The terminal block has screw terminal and solder terminal(tab terminal also can be used)
Rainproof cap,Water-proof and Oil-proof,It is suitable for full series products.
Mounting hole:¢12mm

Characteristic:

Contact Resistance	15MΩ max.(Initial)
Insulation Resistance	100MΩ above(Under 500VDC)
Dielectric Strength	2000VAC,50/60Hz for 1 Minute
Vibration	10-55Hz,1.5mm Double amplitude
Ambien temperature	-25℃～+80℃
Humidity	85﹪ RH max.
Life	Mechanical: 500,000 operations/min
Life	Electrical:100,000 operations/min
