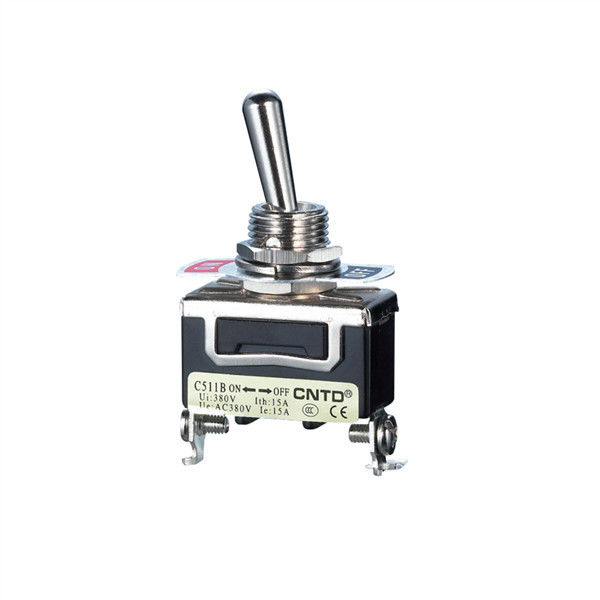

2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs

2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs

    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs
    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs
    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs
    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs
    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs
    • 2 Pin SPST 250V 15A ON-OFF Black,Heavy Duty Toggle Switch.C511B,Rohs

    Product Details:

    Place of Origin: China
    Brand Name: CNTD
    Certification: ROHS
    Model Number: C511B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Packaging Details: PE bag,Carton
    Delivery Time: 20days
    Payment Terms: TT/PayPal
    Supply Ability: 200000pcs/Month
    Contact Now
    Detailed Product Description

    #C511B 2 Pin Single pole,Single throw. 250V 15A ON-OFF Black,Screw terminal.Heavy Duty Toggle Switch.Rohs.

    Size: 29*16mm(see drawing)



    • The Current has 10A and 15A
    • Movement way has fixed type and auto-return type(Both single-throw and double-throw can return)
    • The terminal block has screw terminal and solder terminal(tab terminal also can be used)
    • Rainproof cap,Water-proof and Oil-proof,It is suitable for full series products.
    • Mounting hole:¢12mm

    Characteristic:

    Contact Resistance 15MΩ max.(Initial)
    Insulation Resistance 100MΩ above(Under 500VDC)
    Dielectric Strength 2000VAC,50/60Hz for 1 Minute
    Vibration 10-55Hz,1.5mm Double amplitude
    Ambien temperature -25℃～+80℃
    Humidity 85﹪ RH max.
    Life Mechanical: 500,000 operations/min
    Electrical:100,000 operations/min
