HIFI series: classic style, exquisite craft, perfect and stable sound performance, the world’s largest HIFI series seller, best choice for you.

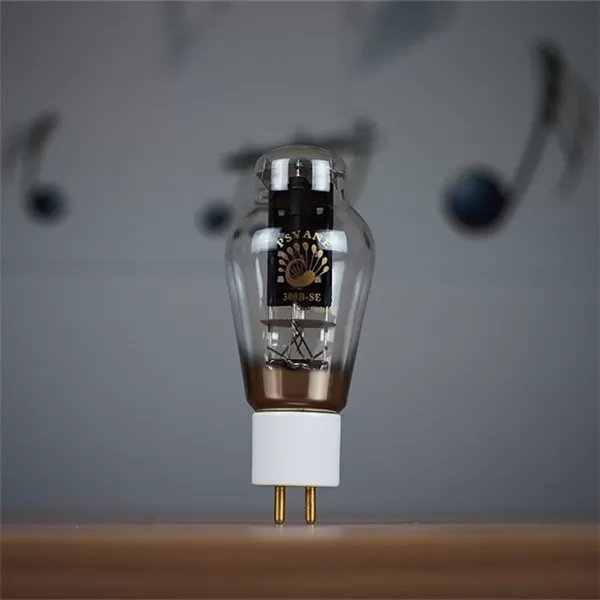

300B-SE, customization, is direct-headed type cathode middle- power double triode, used in class A1 amplifier. In audio amplifier, it suits for the condition that the output power is 10W.
Maximum Rating
Ua……………480 V
Pa……………40 W
Ik
with cathode bias………100 mA
with fixed bias……………70 mA
Direct Interelectrode Capacitances
input……………9PF
output……………4.3PF
grid to plate………15PF
Static parameter
Ua………….300V
-Ug…………60V
Ia……………60mA
Gm…………5.5mA/V
ri……………0.7KΩ
u ……………3.85
Pout………..6.6W
Recommended parameter
Ug Ua Uf(AC) Uf(DC) I a
V ----~V-----V----- mA
200---33---29.5 ---77
200---45---41.5 ---20
250---46---42.6 ---74
250---57---53.6 ---22
300---60---56.5 ---68
300---70---66.5 ---23
400---86---82.5 ---68
400---98---94.5 –-19
Limited parameter
450--100--96.5--60
Up till now, PSVANE has been the lead and noble in the field of tube sales. Not only had it been well received by users, but also even some amplifiers at home and abroad has had upgraded to add PSVANE as a selling point.
PSVANE always front in R&D of tubes. Till 2013, PSVANE has accumulated the power to launch nearly 10 types of new items constantly, and all types are the tops in market, which gained numerous praises.
As the most promising products, three new items naming UK are ready to have a grand listing.
UK-EL34, UK-KT88, UK-6SN7, which are PSVANE HI-FI series, have the greatest cost performance that have never seen in history.
These are the items that PSVANE European R&D team has spent nearly one year to produce. Having received constructional dissection in many types of classical English and Swedish prototype tubes that are the same size but were produced in different periods, analyzed one by one and copied materials to ask the most stability and greatest sound performance, even received many times of revises of sound performance that across the ocean, our team still hold the belief that has a sensitive feeling about products as artists and be persistent like craftsmen, also keep the ancient and precise handwork skill:
Three types of items all adopt the most English sound- tasted plate material—“Mould Screen”, and all integrate with the symbolized musicality and emotional attractiveness that PSVANE have, we believe what you are going to get are the most sound-tasted tube that are the same price;
With vintage style as prerequisite, having respected and followed structural design and material use of the earlier classical same size tubes, we preserve the original structure and sound performance of three items.
To ensure the durability and detail transformation of our products, we still use the gold-painting technology to base pin even in low selling price.
